ELEVATE
Concept.
ELEVATE is a kinetic, hexagonal installation designed to celebrate the intersection of art, fashion, and movement. It was inspired by the cultural rise of accessories—especially sneakers—as artistic statements. Traditional displays are static and often fail to highlight the creative value of these objects.
ELEVATE breaks this limitation. It turns everyday accessories into captivating, moving centerpieces. At its core is a dynamic platform that rhythmically moves up and down, bringing items like shoes or jewelry to life. The hexagonal, tessellated structure adds a modern geometric aesthetic, making it an immersive display piece rather than just a shelf.
Process.
Concept Inspiration: Sneaker culture, modern art installations, and tessellation patterns.

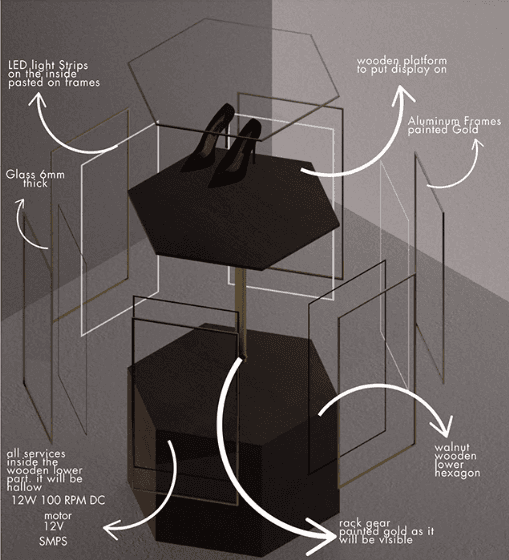

Structure:
Frame: Aluminum (painted gold)
Platform: Walnut-finished wooden base with a moving central plate
Display surface: 6mm clear glass
Interior: Hidden components for a clean look
Motion System:
Rack and pinion mechanism
12W 100 RPM DC motor
Controlled by ESP32 with motor driver
Power: 12V SMPS
Motion triggered by IR sensors
Movement: The plate moves 127mm up and down from its mid-point, creating a subtle yet powerful motion loop.
Software used: SketchUp, AutoCAD, V-Ray

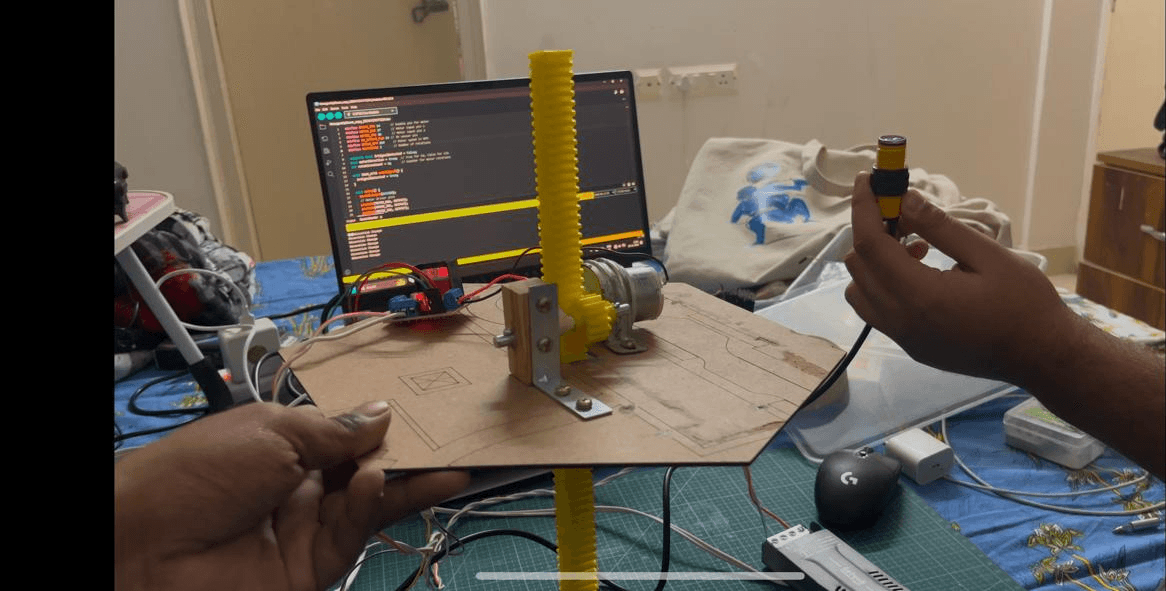

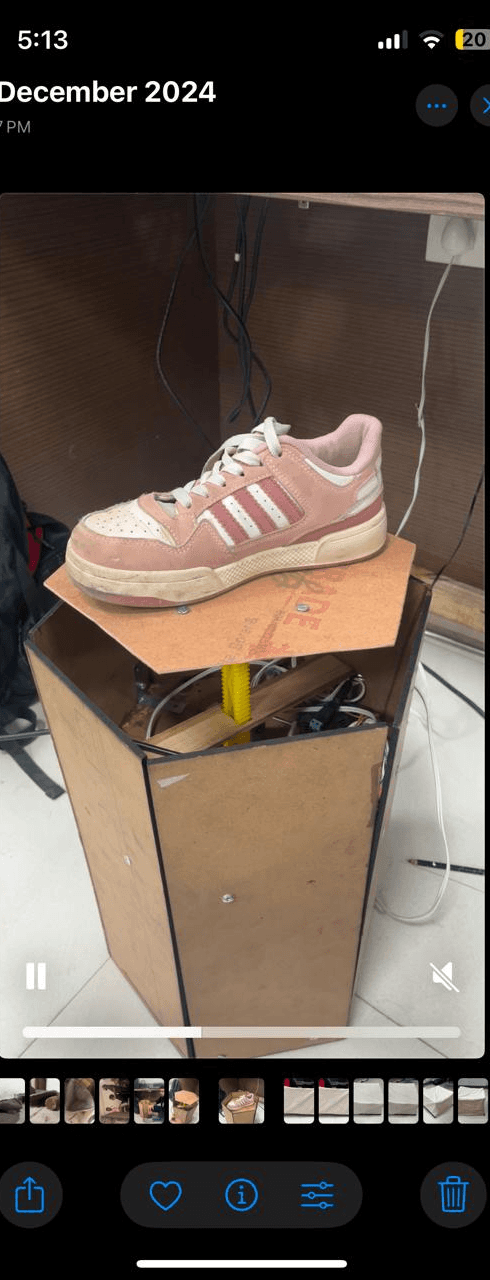

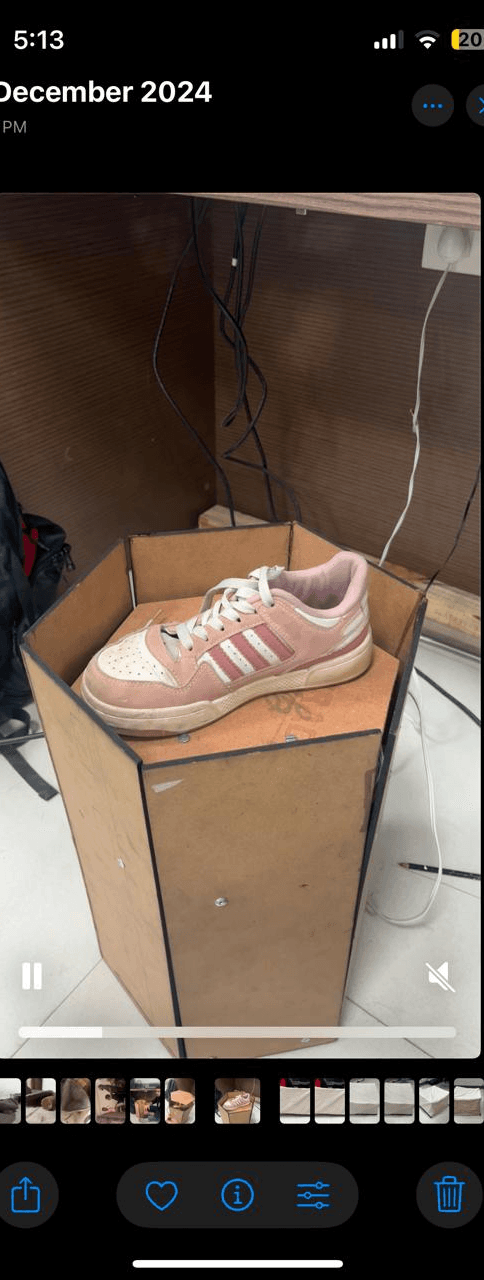

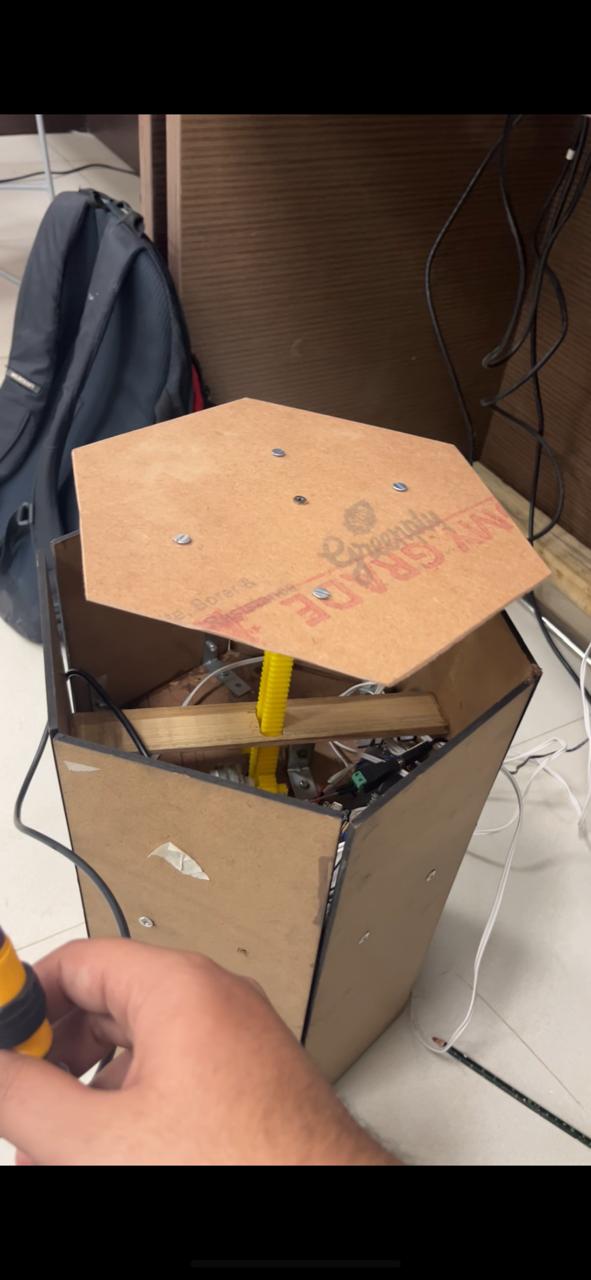

PROTOTYPE:
Result
A fully functioning kinetic display system
Brings motion and life to otherwise static objects
Visually engaging — turns accessories into moving artworks
Seamlessly blends technology and craftsmanship
Successfully tested with functional prototype
Modular and scalable in concept (wall, floor, or ceiling adaptations possible)
